Well I didn't make any for the shoot, but I'll see if I can sketch something up a little later. Just about to head out for the premiere.

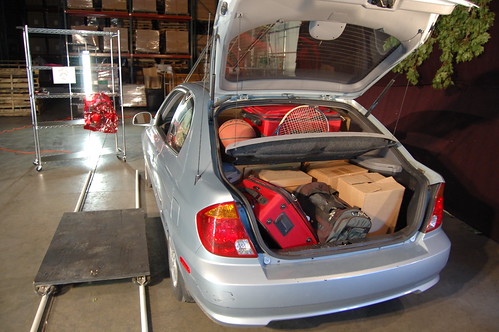

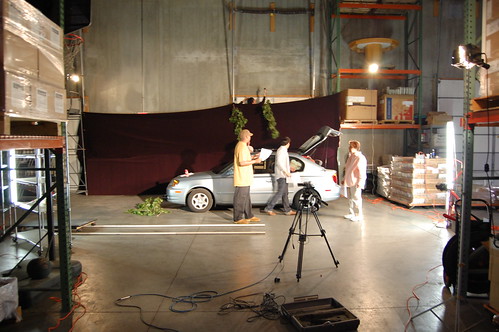

EDIT: Here's a couple production stills that will give you some idea...
150w halogen's on either side of the car, for a little fill, a 500w halogen on the corner of the desk behind Carol (not visible in the photo) fluorescent shop lights on either side of the car, 3 500w halogen's on the right (hidden behind the pallet rack in this photo), another 250w visible on the right in front of the pallet rack. a 250 and a 500w on a short light stand for the "headlights", hooked to a dimmer pack, and 2 120watt red flood lights, along with a 500watt halogen behind a piece of red gel for the "tail lights" (visible in the second photo)
additionally there is a 60w compact fluorescent scoop light between the two front seats of the car for car interior light. The flashlight that appears in the two shots by the tire was a practical light -- small LED flashlight.
There was also a very large overhead lamp off to the right that couldn't be shut off -- so I used it as the motivation for the light set up, playing it as the "moon" and adding the rest of the lights to bump the exposure level up, and fill in some of the shadows. That's basically it, the lights didn't get moved much, the fluorescents on either side were moved closer or further as needed for different shots, but otherwise everything stayed put.
I think there were some extra overhead lights on in the photos...
I shot 24p, with a shutter speed of 1/48. Every shot was somewhere between f2.8 and f4... we honestly could have used a lot more light, it would have been nice to have a 2k for the key, and maybe a 1k for a hair light, but we didn't have the lights, or the gear for rigging them where they should have ideally been placed.
Hope that helps some.
